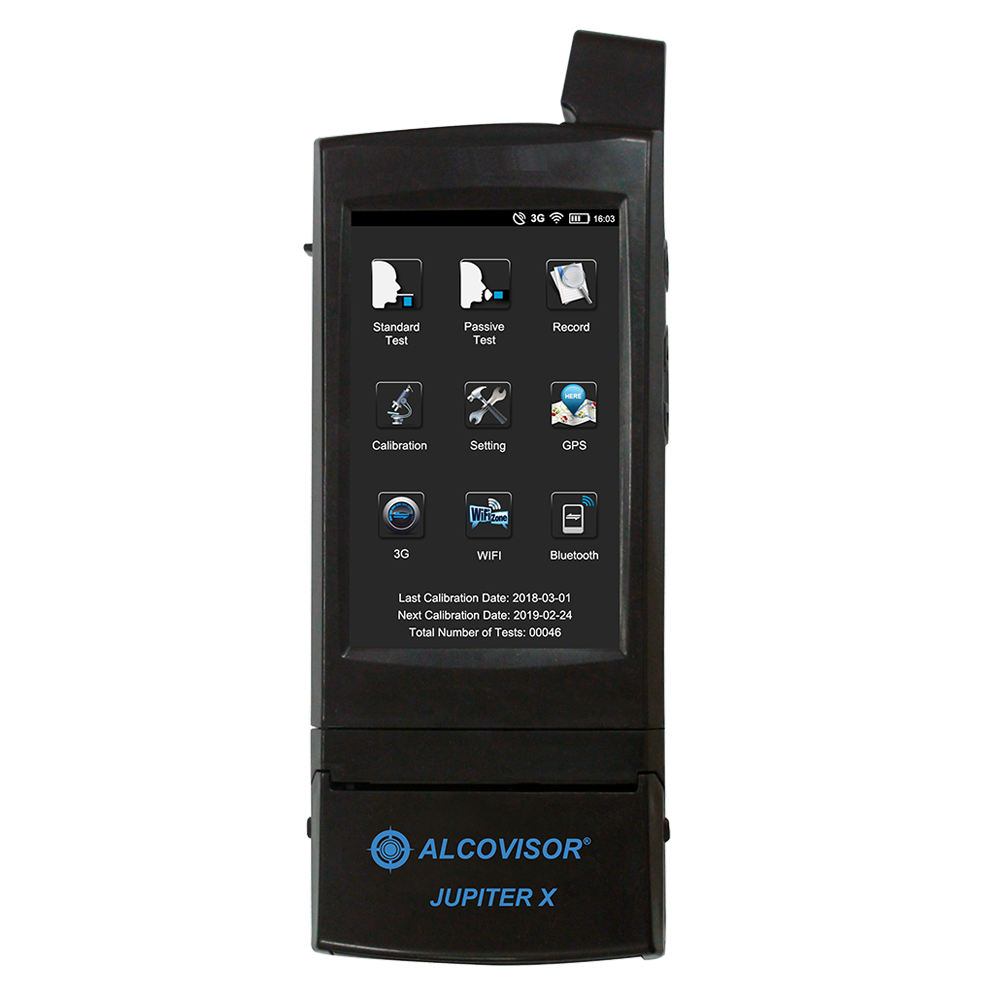

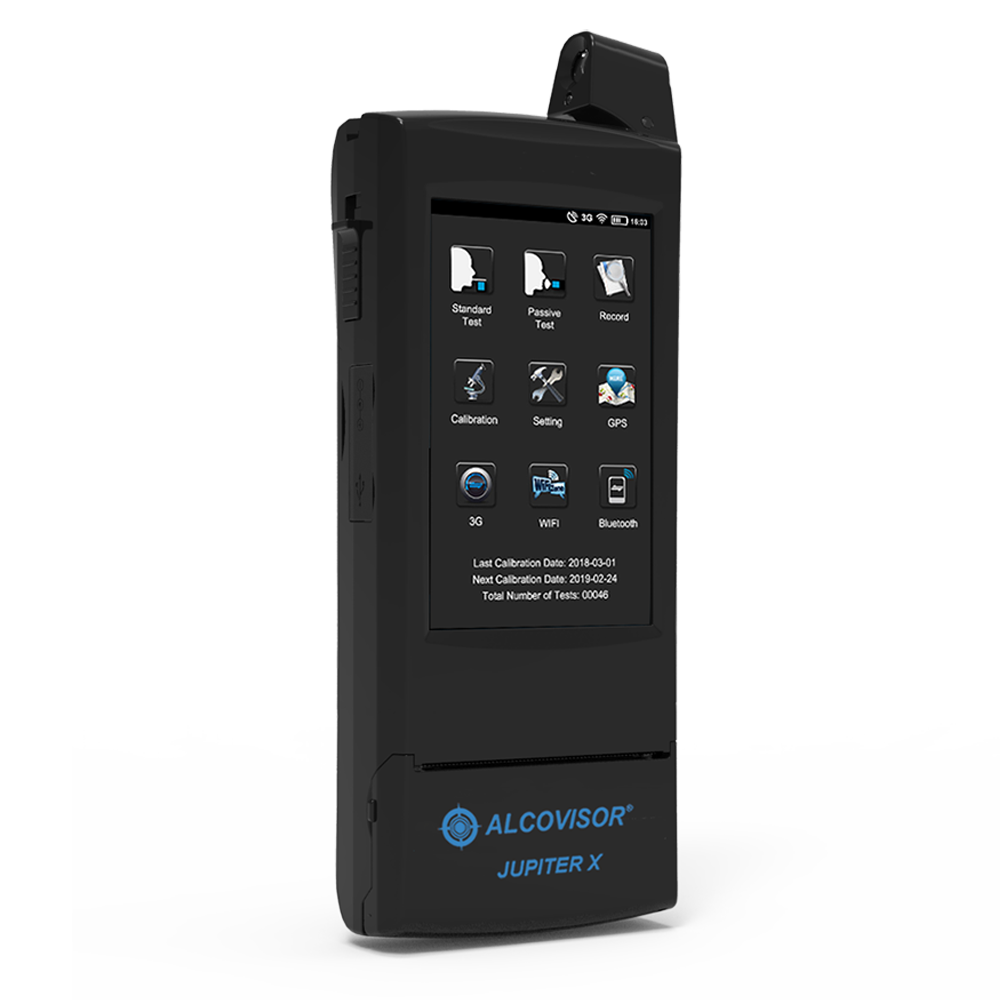

JupiterX

Key Features

  • Android 5.1
  • Built-in Printer, GPS
  • 4G/WIFI
  • Photo Capture
  • Provide evidential records by auto capturing while subject blowing
  • 100,000 tests records stored in memory
  • 4.3" Colour Touch Screen
  • Mouthpiece can be automatically ejected
  • USB PC connection

Certificate

DOT certificate CE certificate ISO 9001 certificate FDA certificate

Specification


Sensor
Fuel Cell
Operating System
Android 5.1
Wireless Communication
4G, WIFI
Working Temperature
-10°C to 50°C
Storage Temperature
-30°C to 70°C
Size
21.2 x 8 x 3.6cm
Weight
433g included battery
Battery
7.4V 2,000mAh Li-ion rechargeable battery
Battery Life
700 tests (250 tests with printout)
Memory
100,000 tests records including all information
Display
4.3" TFT colour touch screen
Camera
5 Megapixel 120° wide angle lens
Response Time
5 seconds
Sampling System
Automatically or manually takes a lung sample
Optional Power
Supply 12 volt car adapter or AC 6 volt adapter
Units of Measure
BrAC: mg/L, or other units
BAC: grm%, mg/mL, mg/100mL, or other units
Detection Range
0.00% BAC to 0.4% BAC
Accuracy
0 - 0.10% BAC ±5%
0.10 - 0.15% BAC ±8%
>0.15% BAC ±10%
GPS
5M range
Printer
Thermal Printer
Connection Type
USB

Download


File Type Upload Date
Manual Download PDF 21 Oct 2024
Brochure Download PDF 17 Aug 2018

Accessory

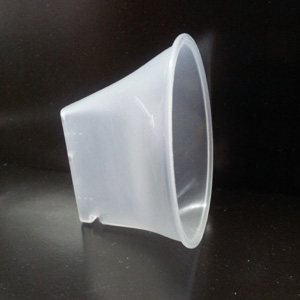

A Sampling Cup is provided for screening test.


Sampling cup

Mouthpiece


Mouthpiece

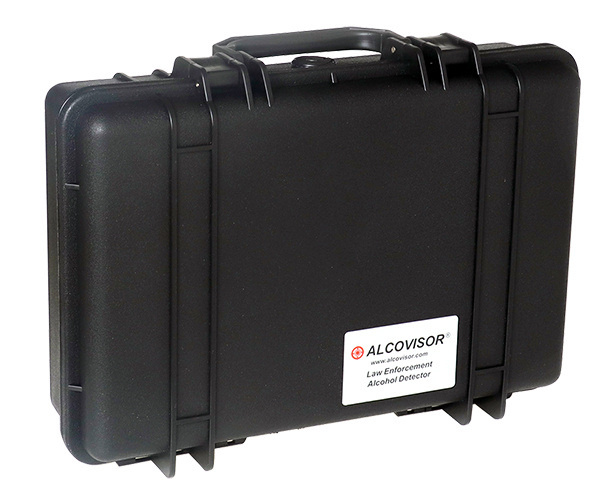

Packing

accessory
