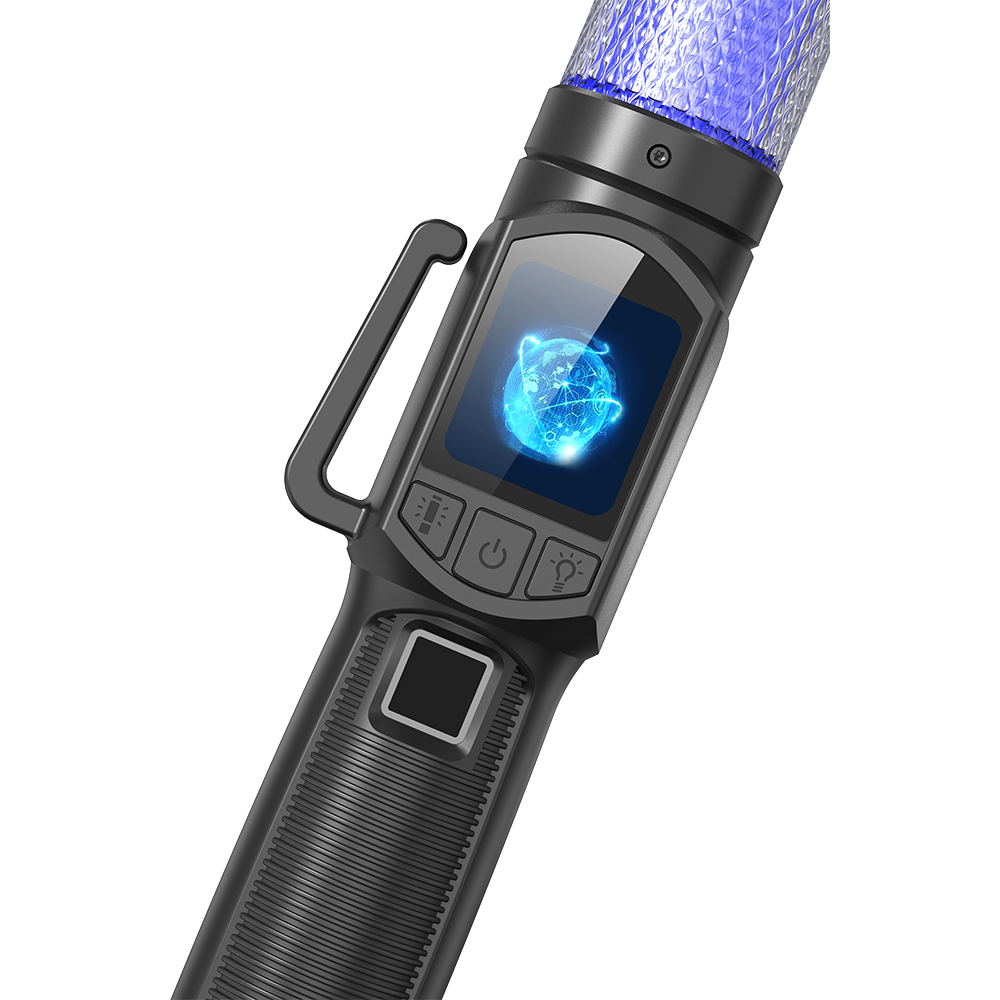

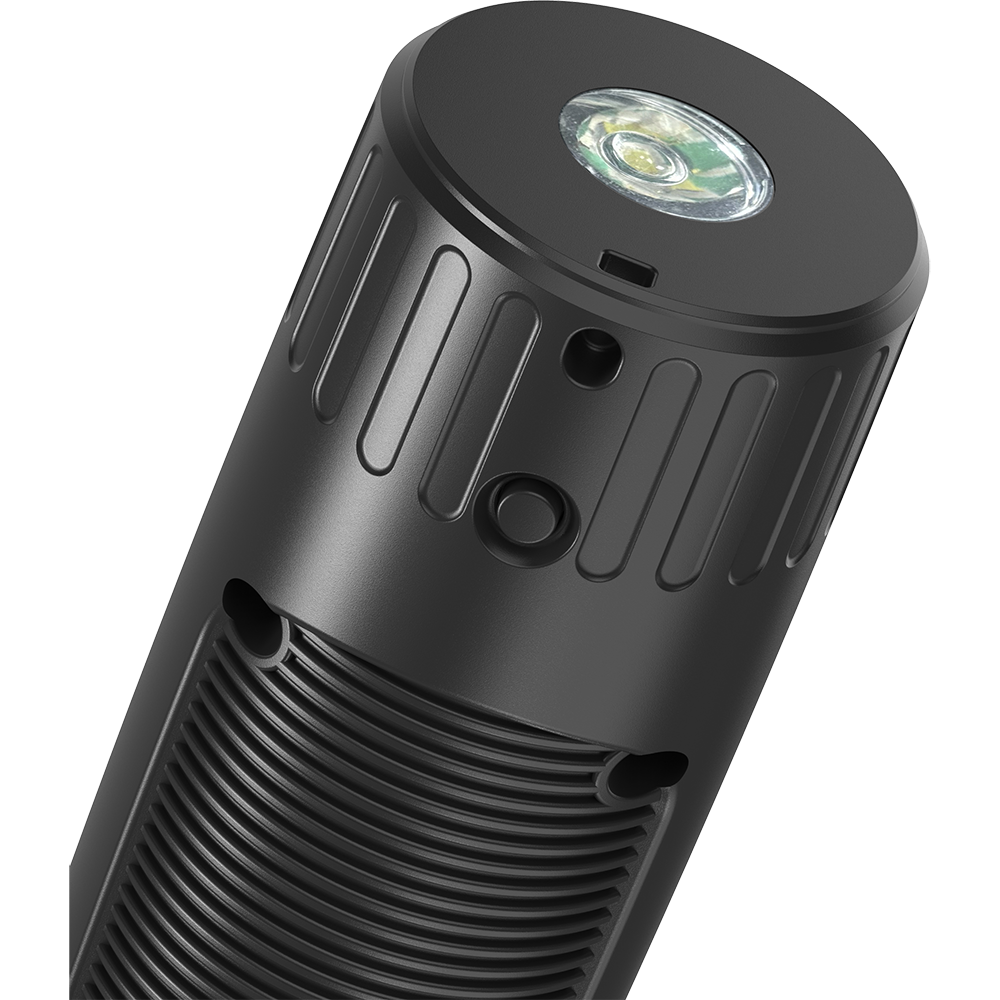

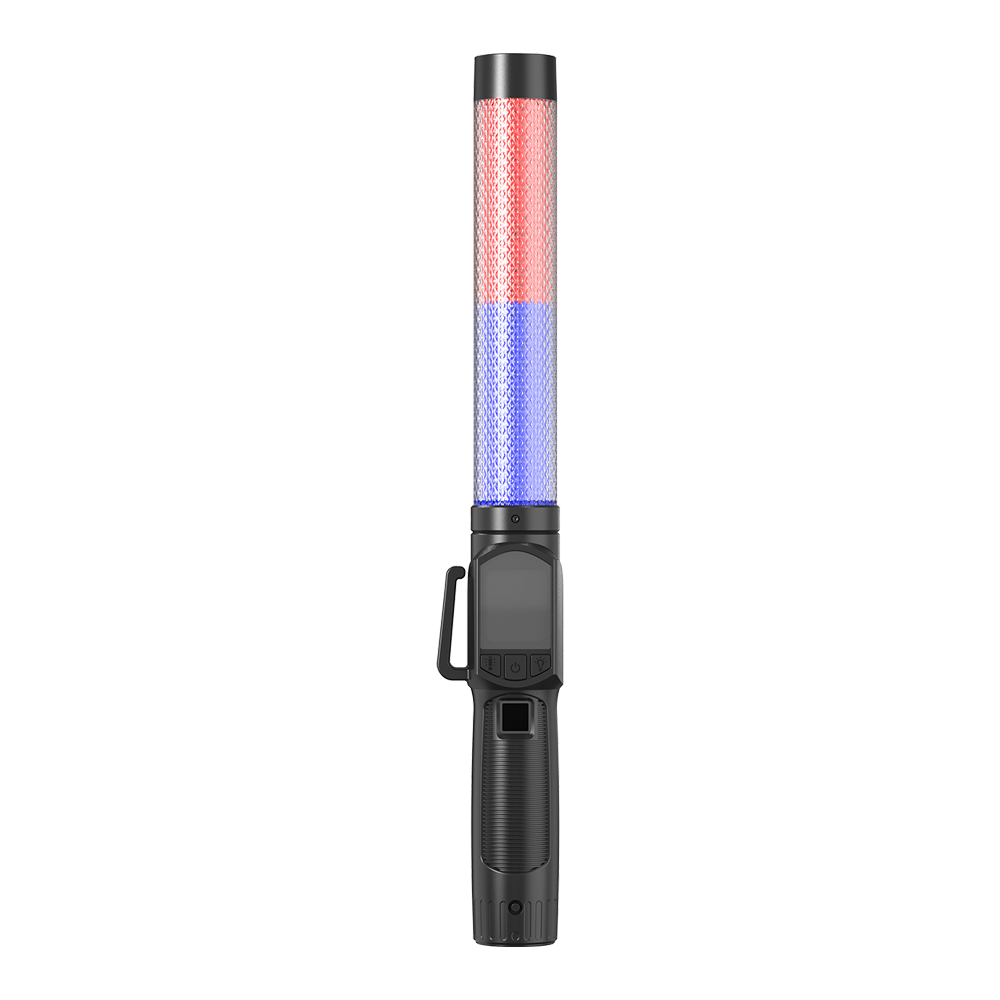

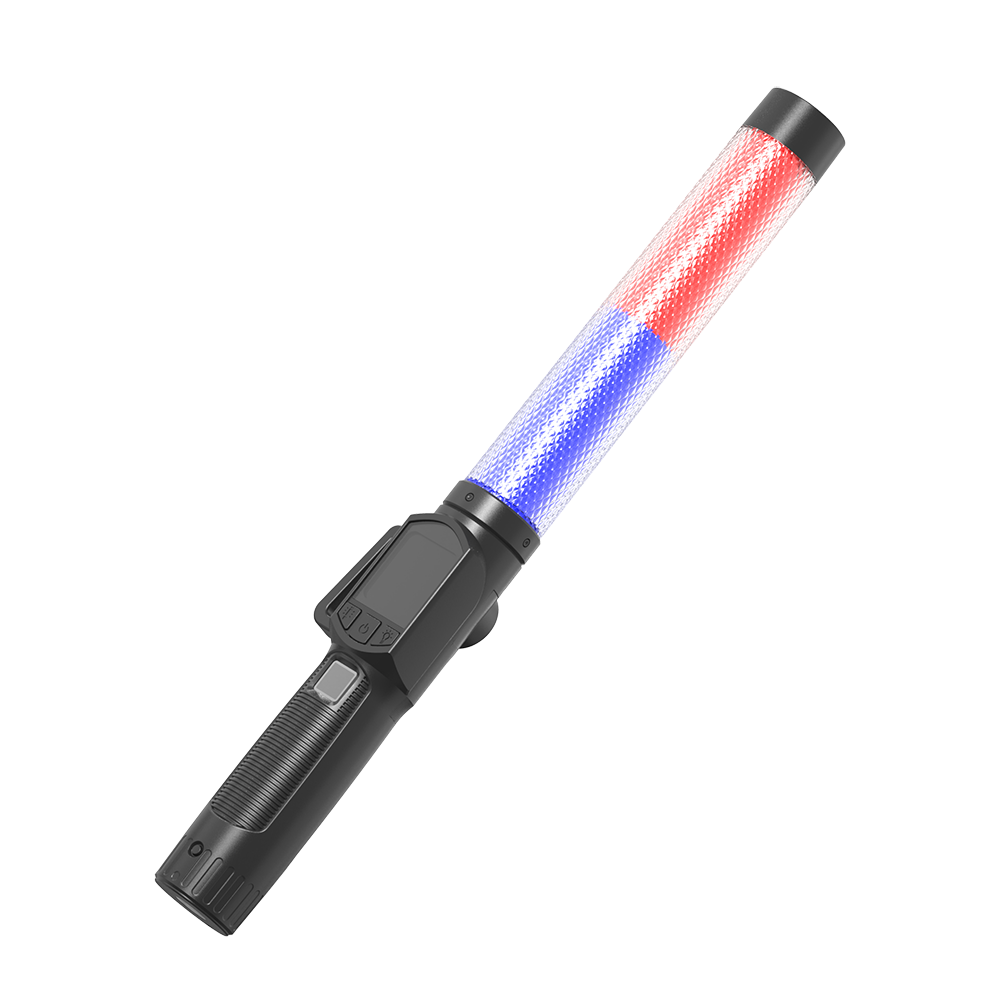

AlcoTorchV10

Key Features

  • Continuous alcohol detection, no blow is needed
  • Automatic warm up during low temperature
  • Traffic Flashlight, Electronic Whistle, Window Breaker
  • Extended Mouthpiece to prevent blowing directly to the operator
  • 4 individual button: Torch, Flashlight, Lock and Alcohol testing button
  • Torch Feature: Bright white, HIGH, LOW and FLASH
  • Baton Feature: ALERT RED LIGHT, BRIGHT and FLASH
  • Under alcohol testing mode, it will shut down automatically after 5 mins. Under Torch and Baton mode, this function is disabled

Certificate

CE certificate ISO 9001 certificate

Specification


Sensor
Fuel Cell
Measuring Modes
Auto Sampling, Passive/Manual Sampling
Pump
Continuous pumping
Working Temperature
-10°C to 50°C
Storage Temperature
-30°C to 70°C
Size
394.5mm x 56.5mm x 43.2mm
Weight
305g included battery
Battery
1,800mAh 3.7V Lithium Rechargeable Battery
Battery Life
6 hours, >4000 tests
Memory
8,000 records
Display
1.69” LCD colour display
Detection Range
0 - 0.2% BAC
Accuracy
At the standard concentration 0.04% BAC:
- Blowing distance 3cm: ±0.005% BAC
- Blowing distance 6cm: ±0.006% BAC
- Blowing distance 10cm: ±0.010% BAC
Testing time
1 - 15 sec

Download


File Type Upload Date
Manual Available soon PDF N/A
Brochure Download PDF 10 Jul 2024
